SKINETTA - Overwrapping Machine - ASK 450T
Specifications
| Manufacturer | SKINETTA |
| Model | ASK 450T |
| Year | 2002 |
| Condition | Used |
| Serial Number | MLTC-IT-F037 |
| Stock Number | MLTC-0004-WH |
Description

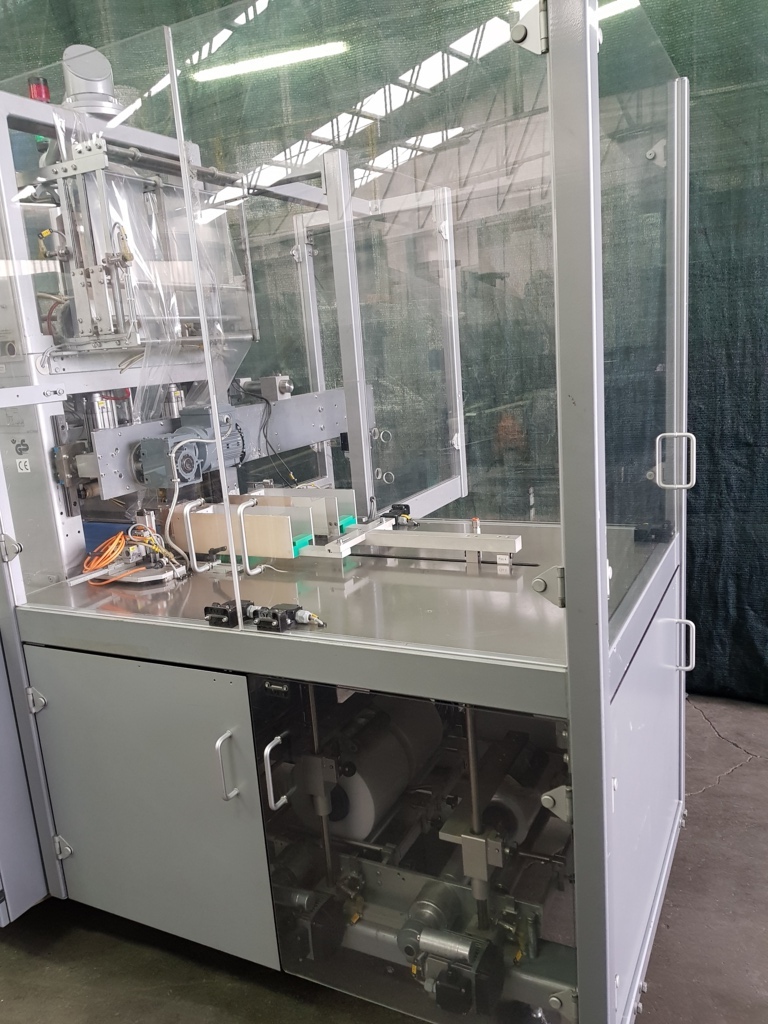

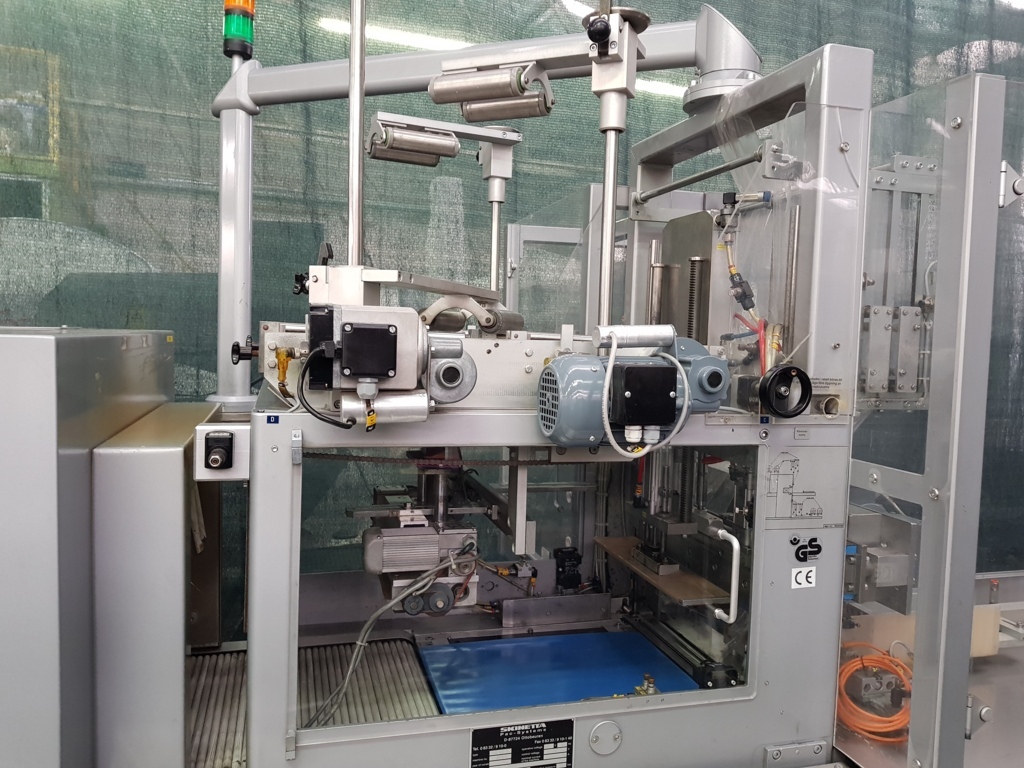

SKINETTA OVERWRAPPING MACHINE, MODEL ASK 450T
Year of construction: 2002

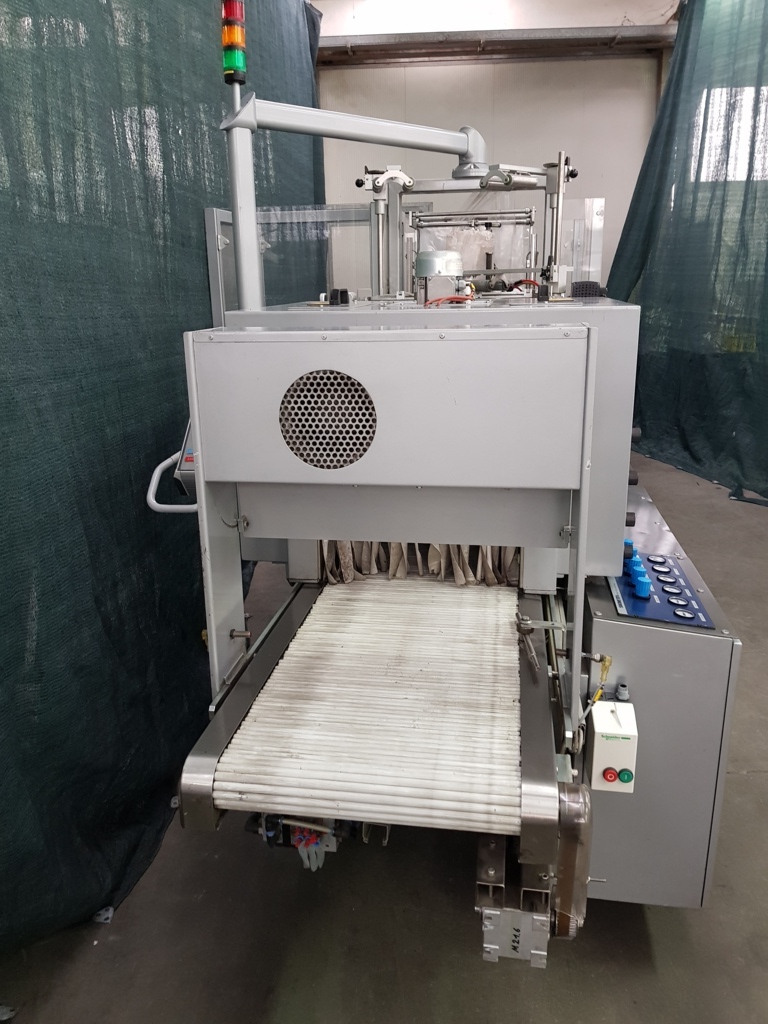

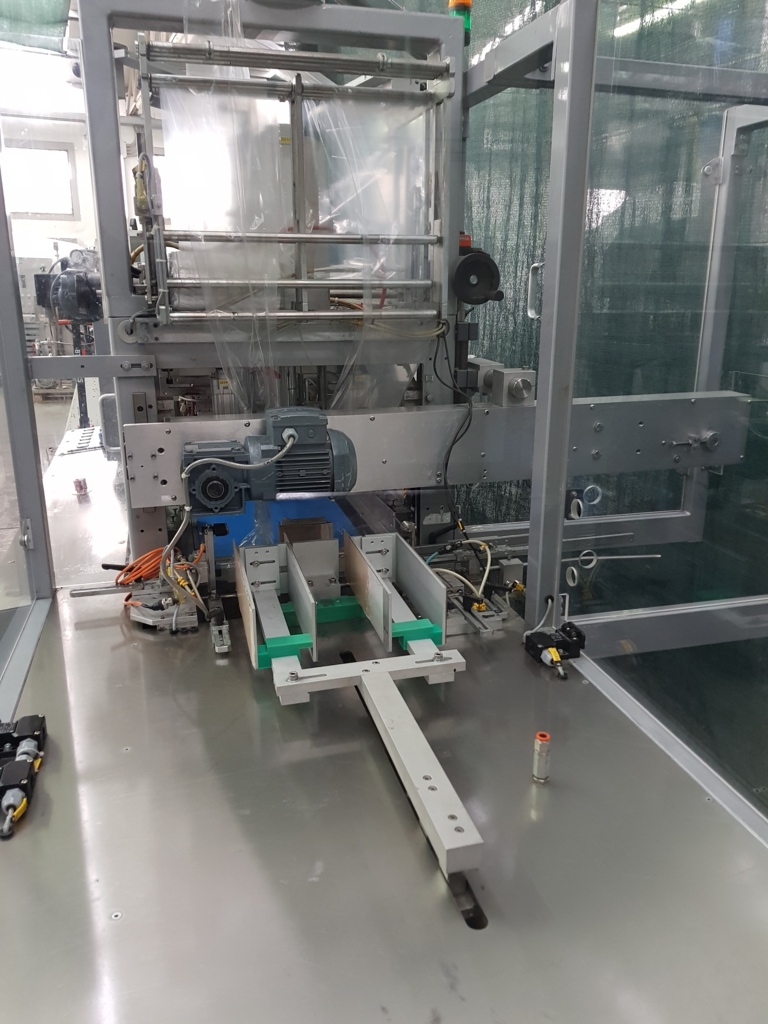

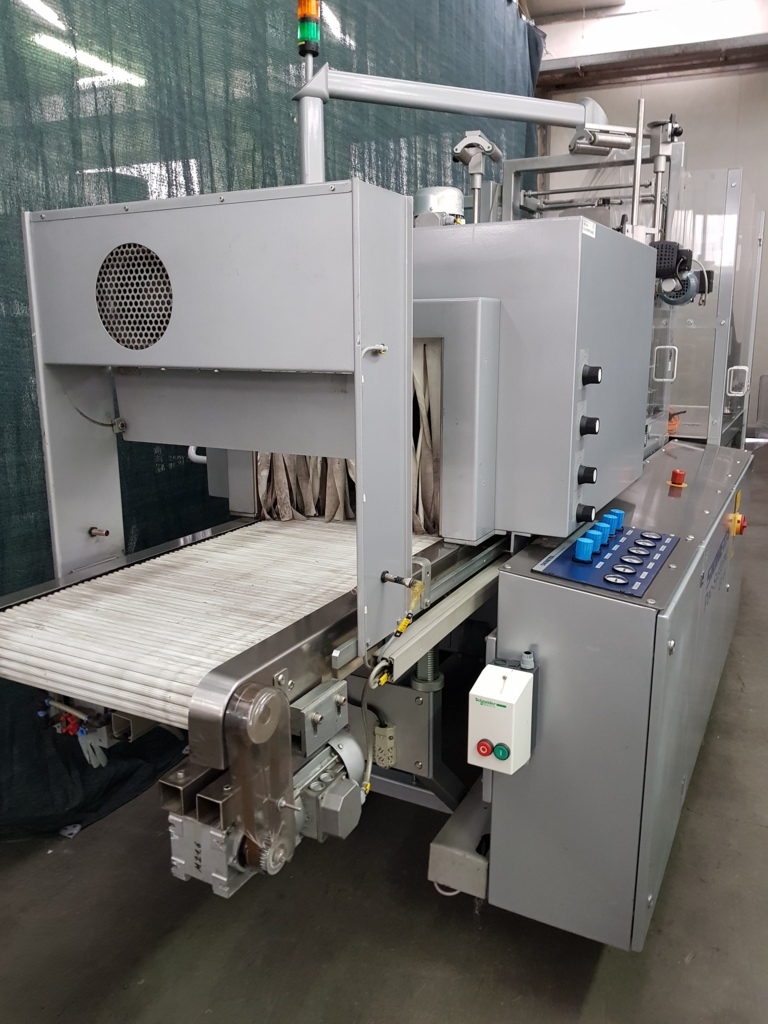

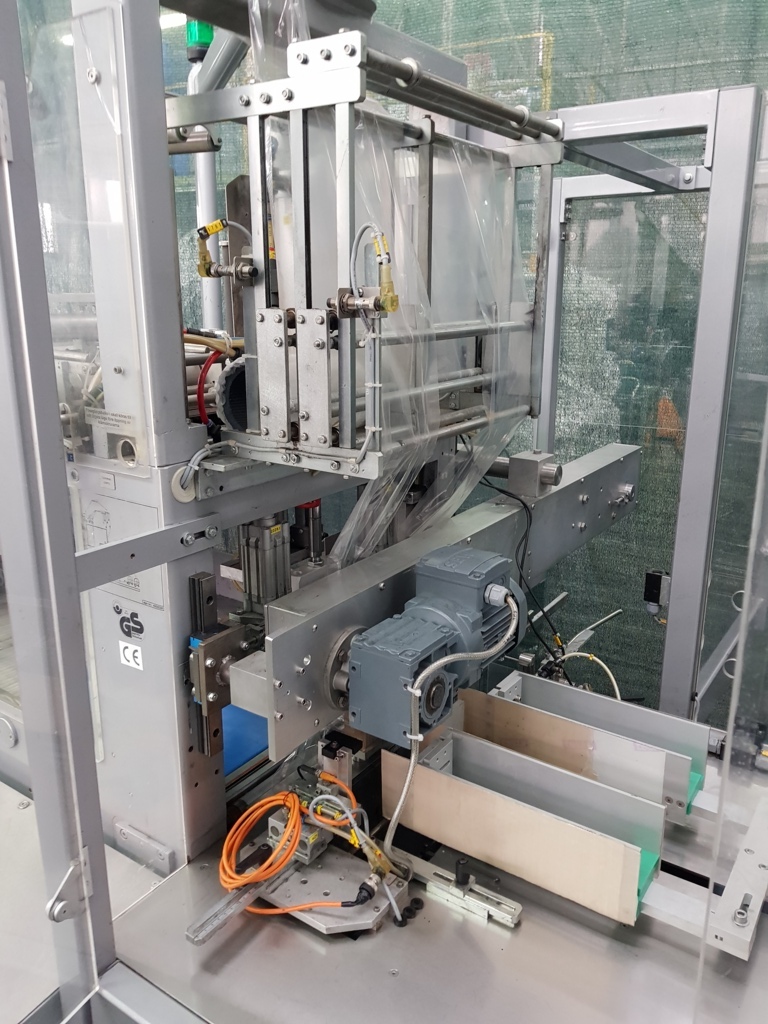

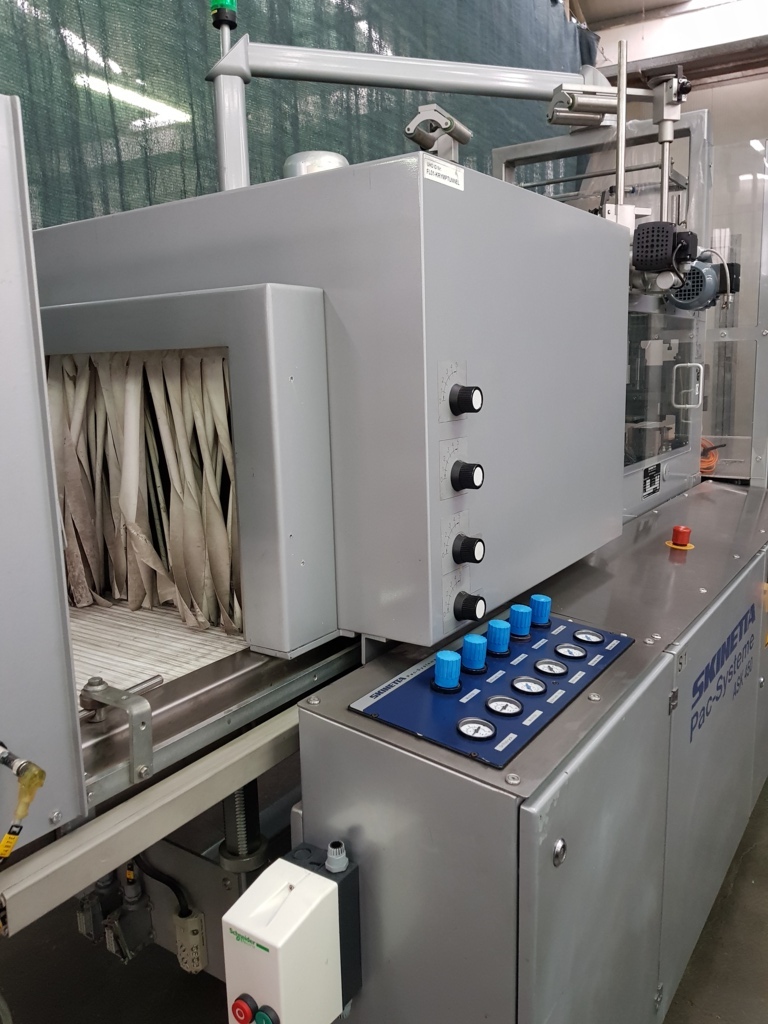

Automatic intermittent motion overwrapper machine, suitable to bundle the product using stretchable film. Guarantees high productivity, accuracy in bundling and easy use. Painted steel construction, infeed product guides with belts. Equipped with tunnel for the heat shrinking of the film.
TECHNICAL DATA
Net weight: Kg 2000
Length: mm 4040
Width: mm 1712
Height: mm 2200
Current: A 22
Frequency: Hz 50
Voltage: Volt 400
Pressure: bar 6
Production characteristics:
Mechanical speed: 15 bundles
Packing material: PE
Max sealing width: 440 mm
Bundle length: 65-260 mm
Bundle width: 100-440 mm
Bundle height: 30-265 mm

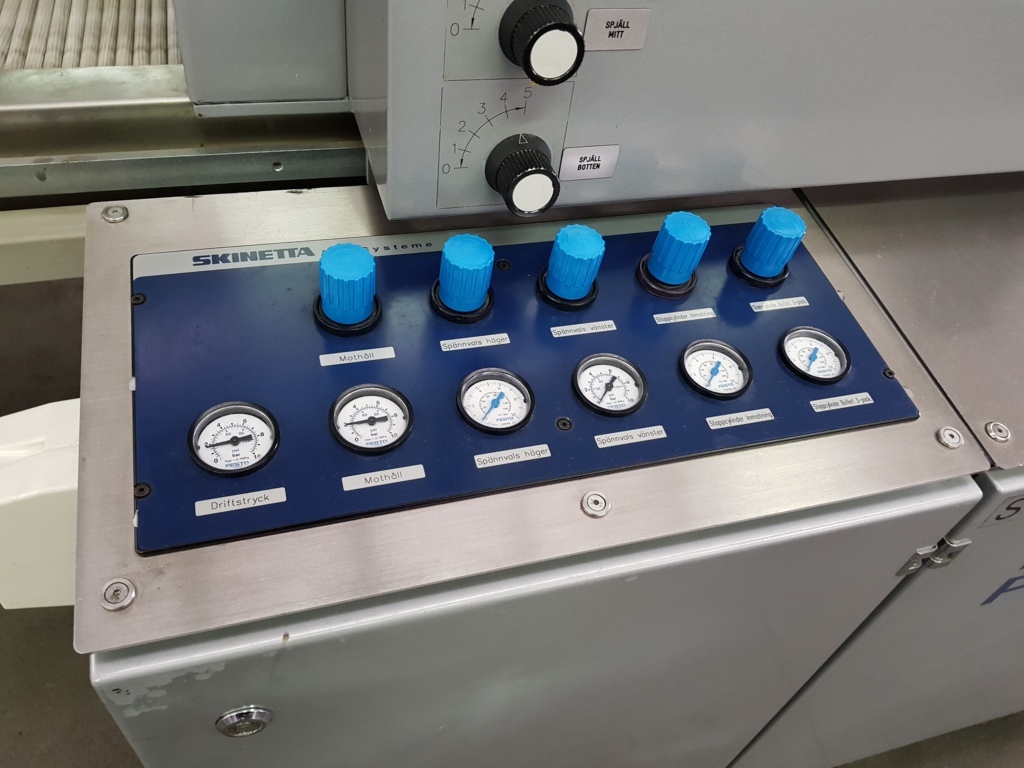

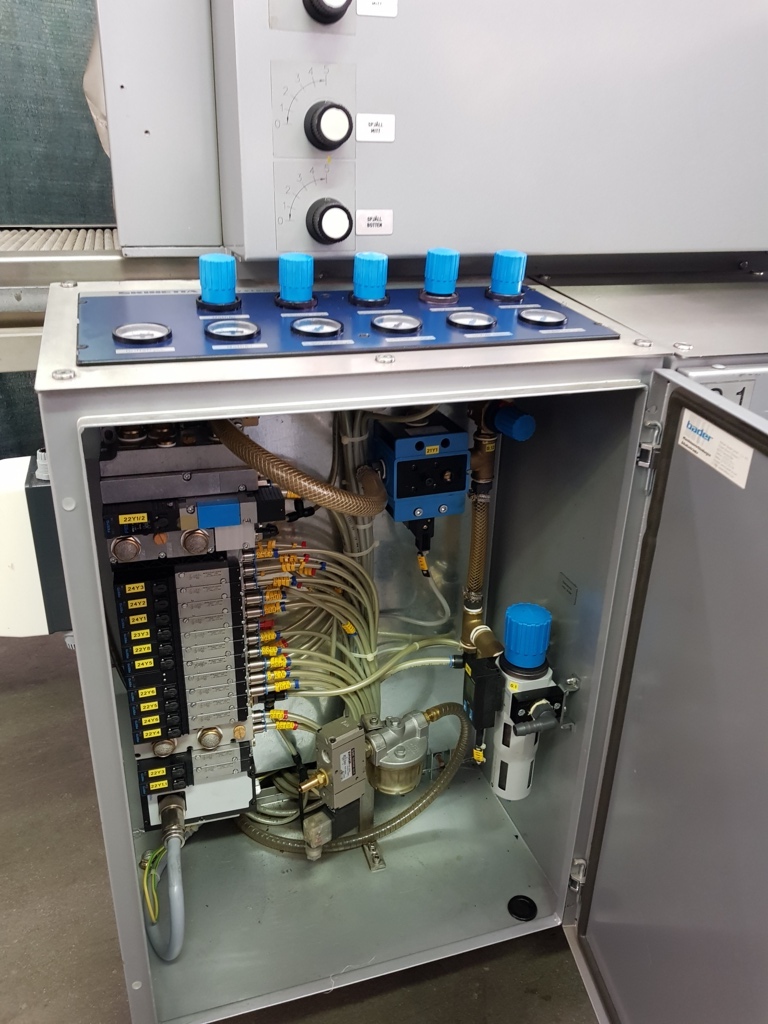

The air service unit consists of an oil mist lubricator and an automatic water separator.

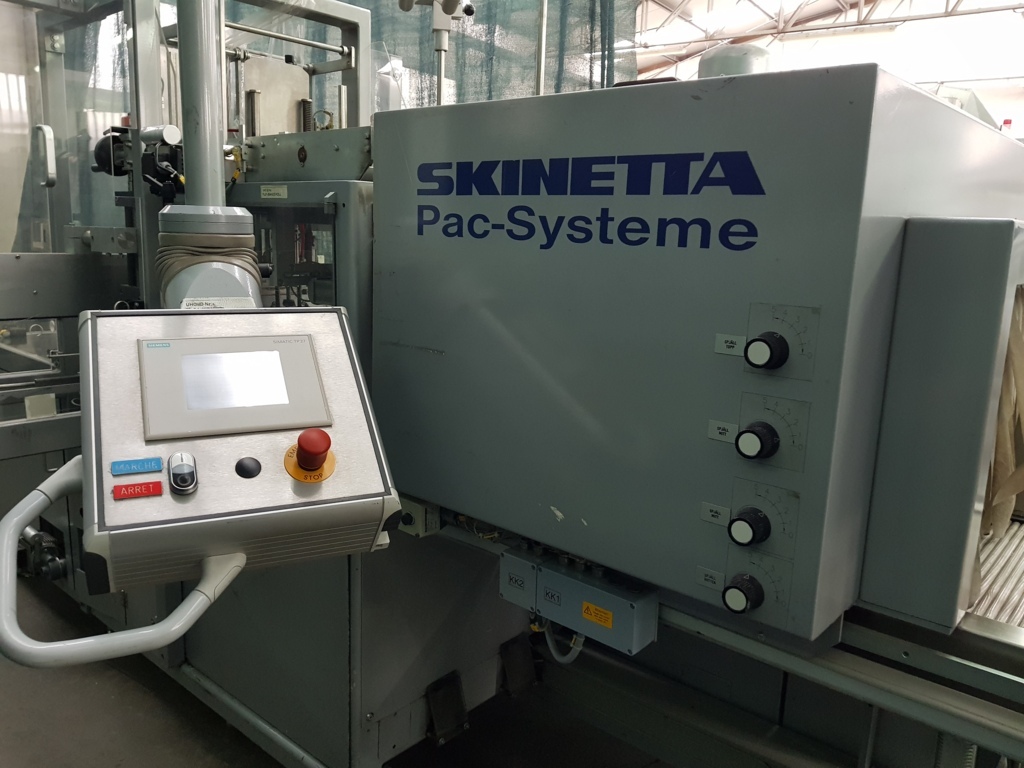

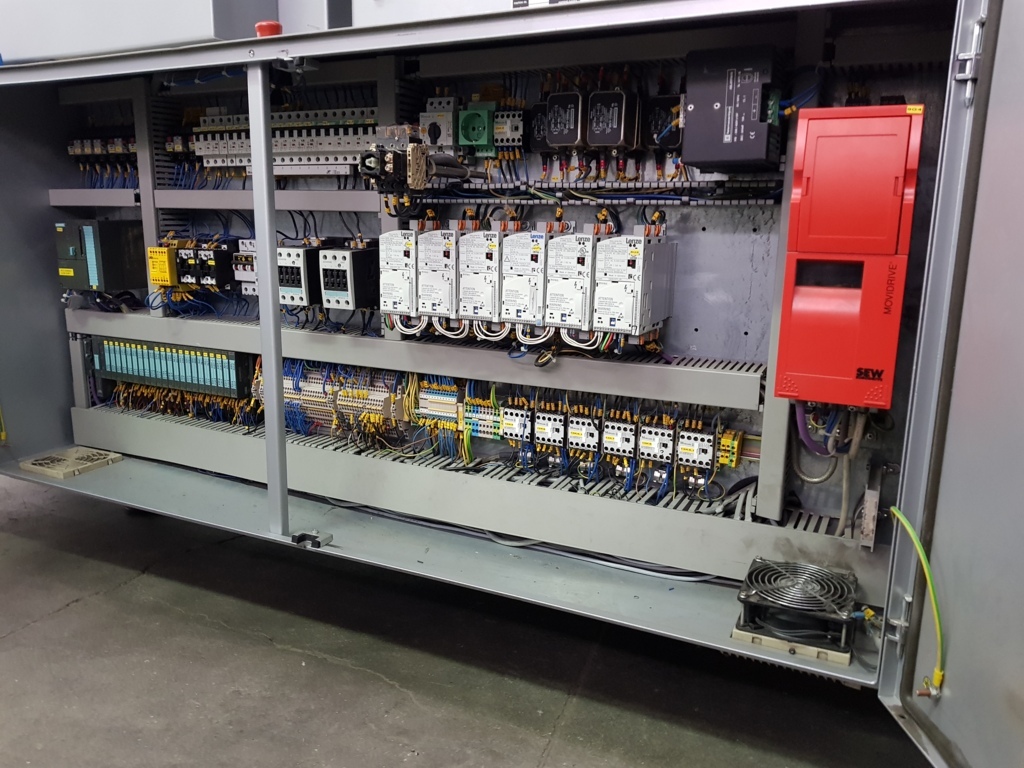

The controls and gages of the electrical control cabinet are centrally located and arranged for maximum operating convenience. The most important controls are protected by a transparent lockable cover on the panel. All valves of the pneumatic cabinet are centralized in a soundproofed cabinet.
