MARCHESINI - Cartoning Machine - BA 100

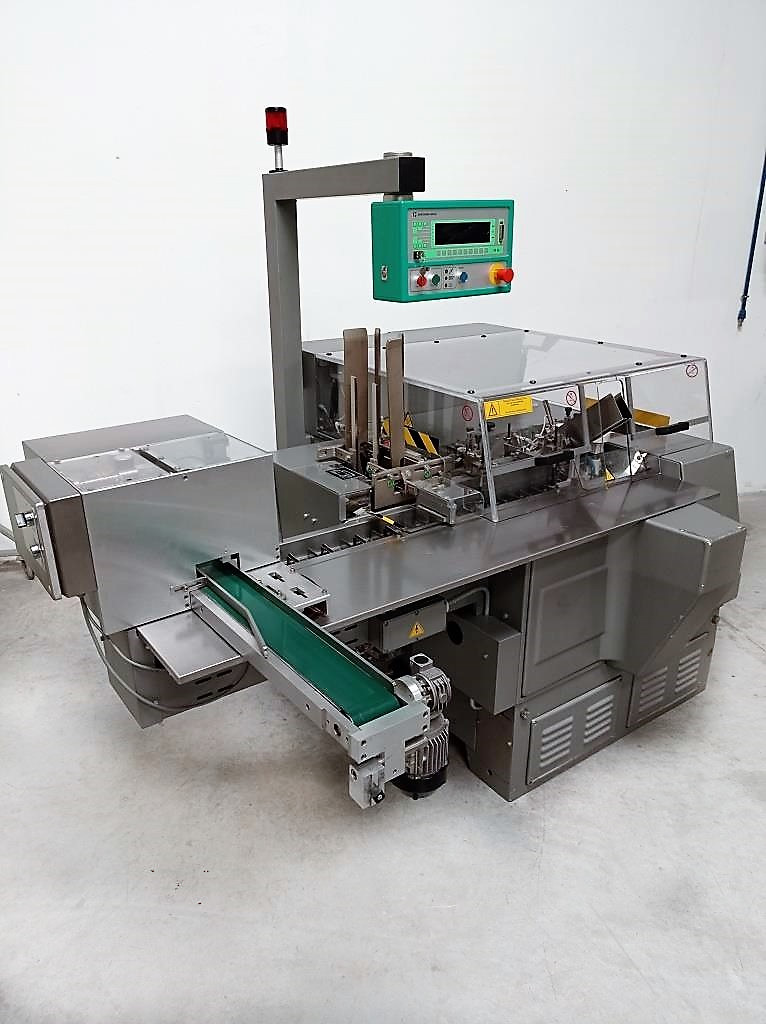

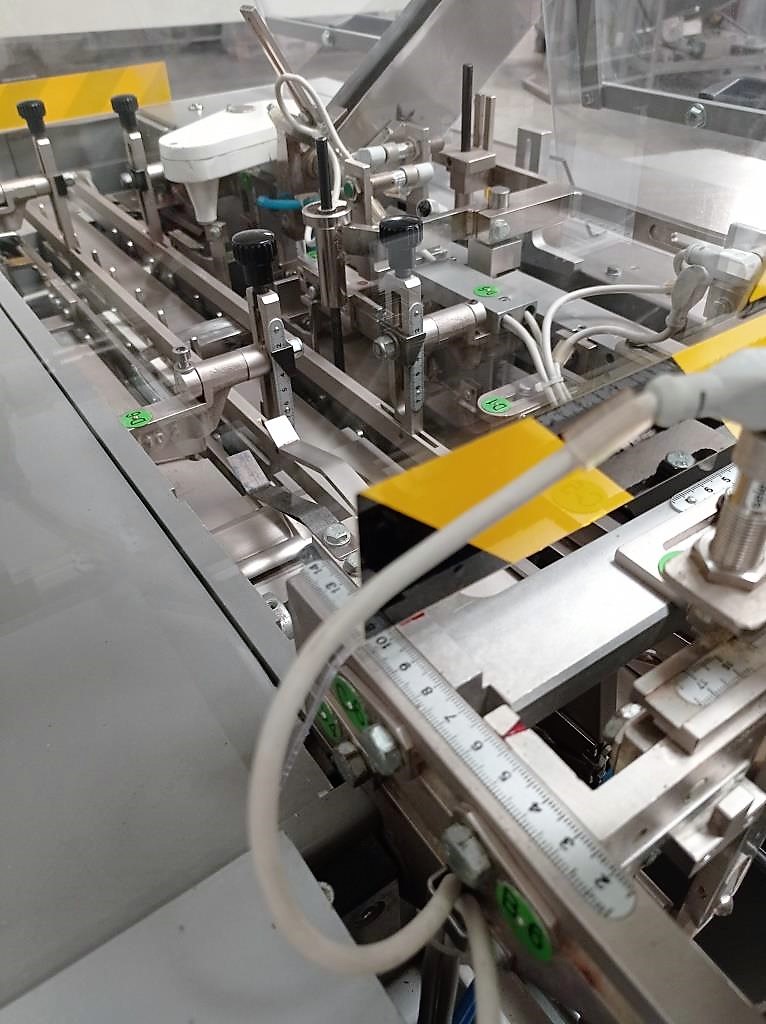

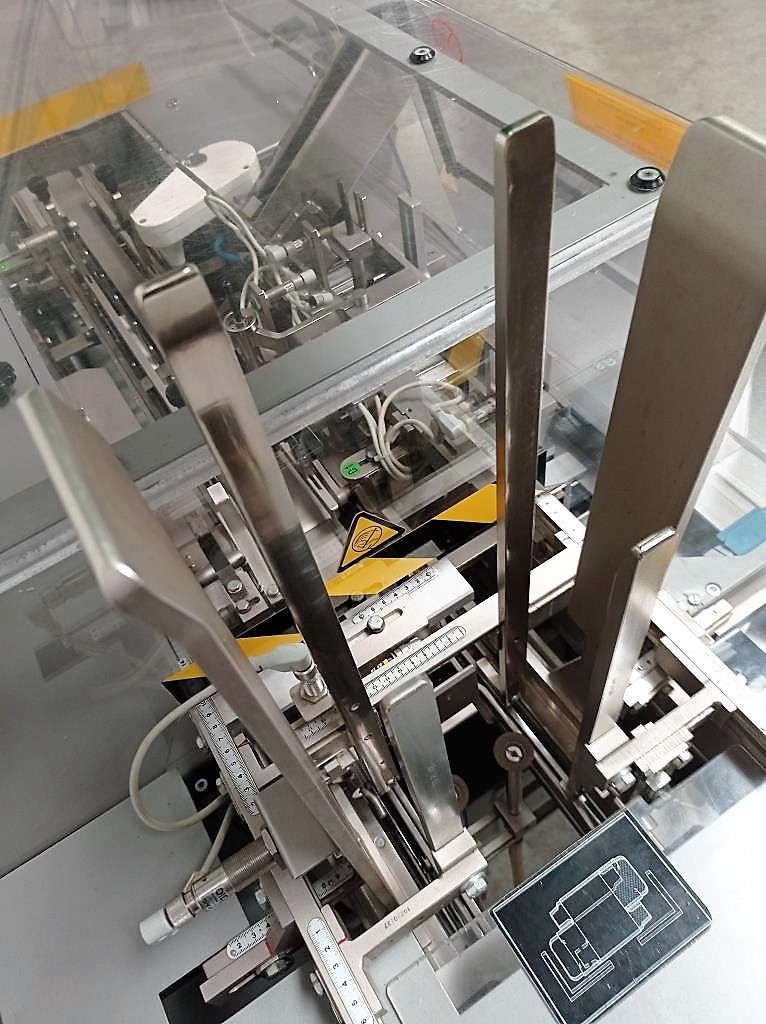

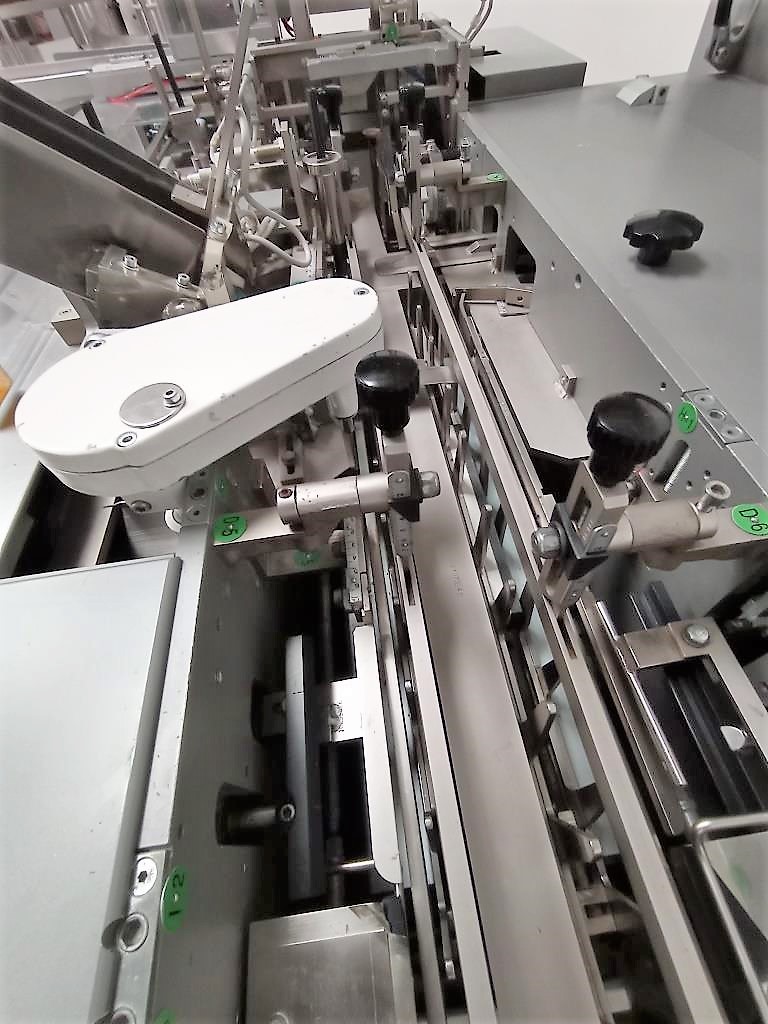

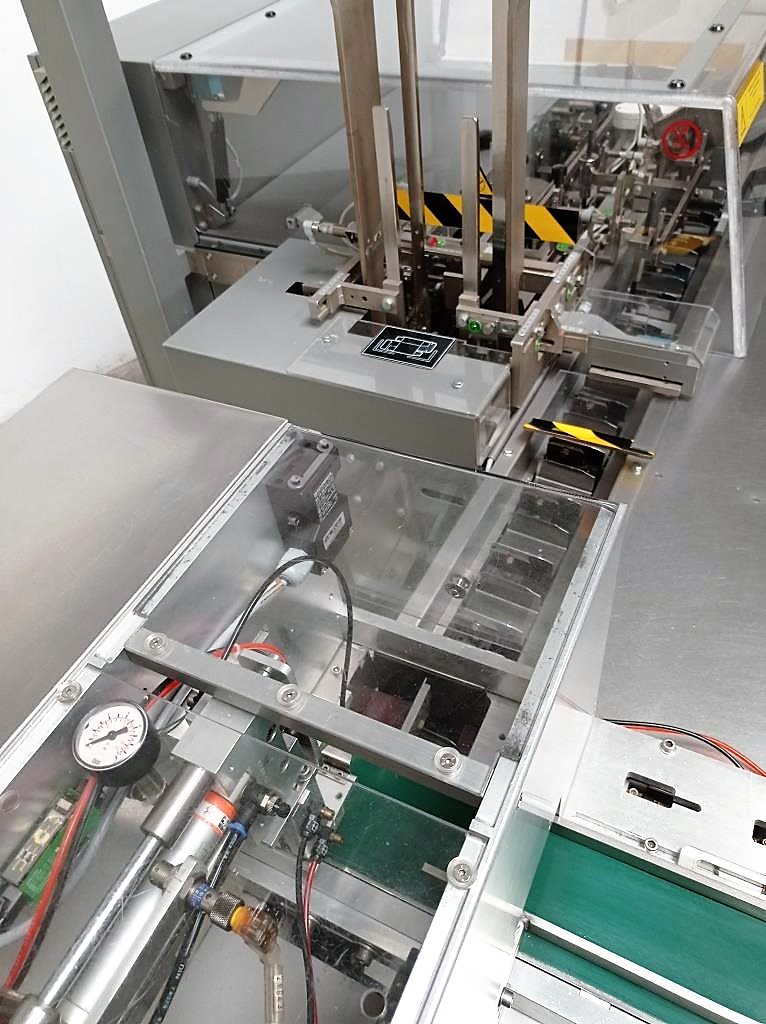

MARCHESINI CARTONING MACHINE, MODEL BA 100

Year of construction: 1995

Technical data:

3 phases

Voltage: Volt 480

Frequency: Hz 60

Absorption: Kw 3

Productions characteristics:

Carton height: 12-55 mm

Carton width: 18-100 mm

Carton length: 50-170 mm

Production capacity max.: 120 cartons/min

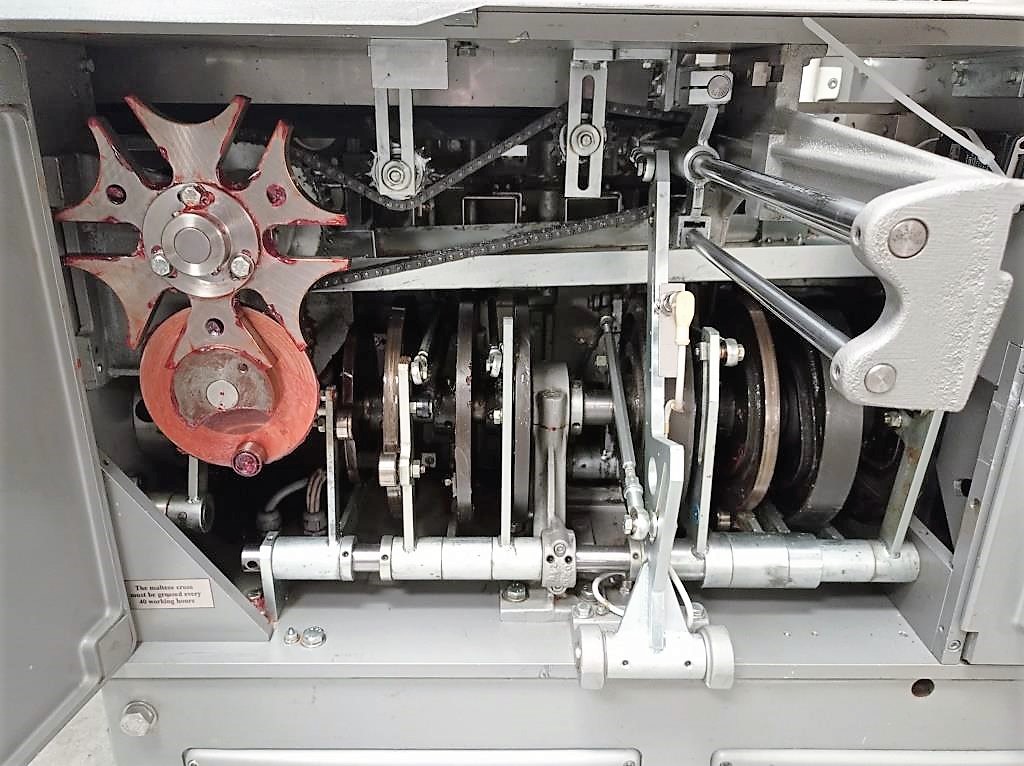

The machine is designed and built to be inserted in a continuous cycle production line. The cartons are continuously checked in order to guarantee that quality packs are produced by the machine. The construction is fully mechanical and requires minimal maintenance facilitated by a unique accessibility to all its parts.

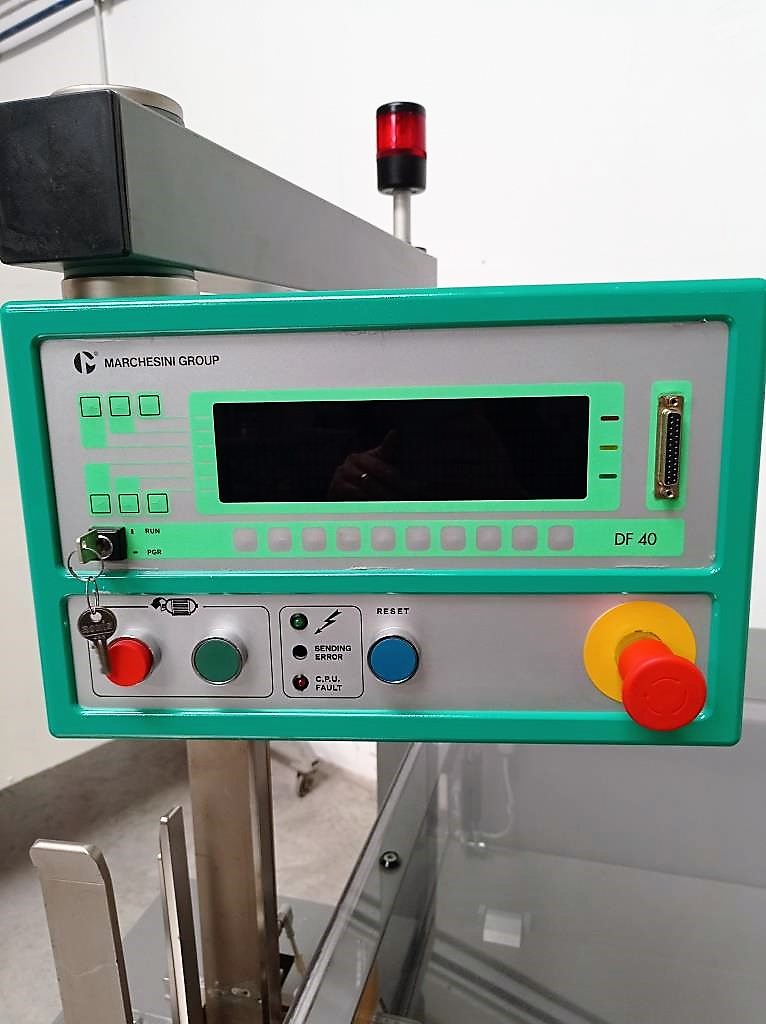

The cartoning cycle is completely automatic. The material handling parts the machine are protected by guards. Built in the operator panel function keys and numeric keypad. The selection between one product or the other to be packaged can be set via the display panel. When cartoning is carried out, the carton is closed by means of mechanical levers and, if during the tests carried out along its path the case results correct, the carton is closed which then is completed and placed on the line. If it results incorrect, the case will be automatically rejected.
