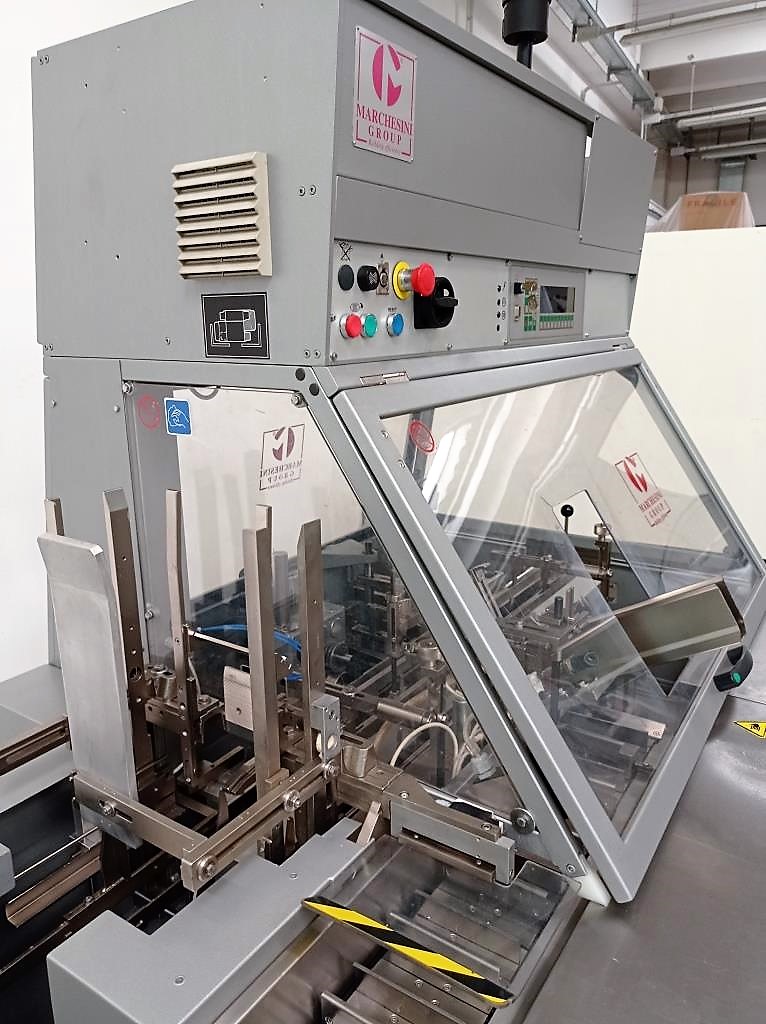

MARCHESINI - Cartoning Machine - BA 50

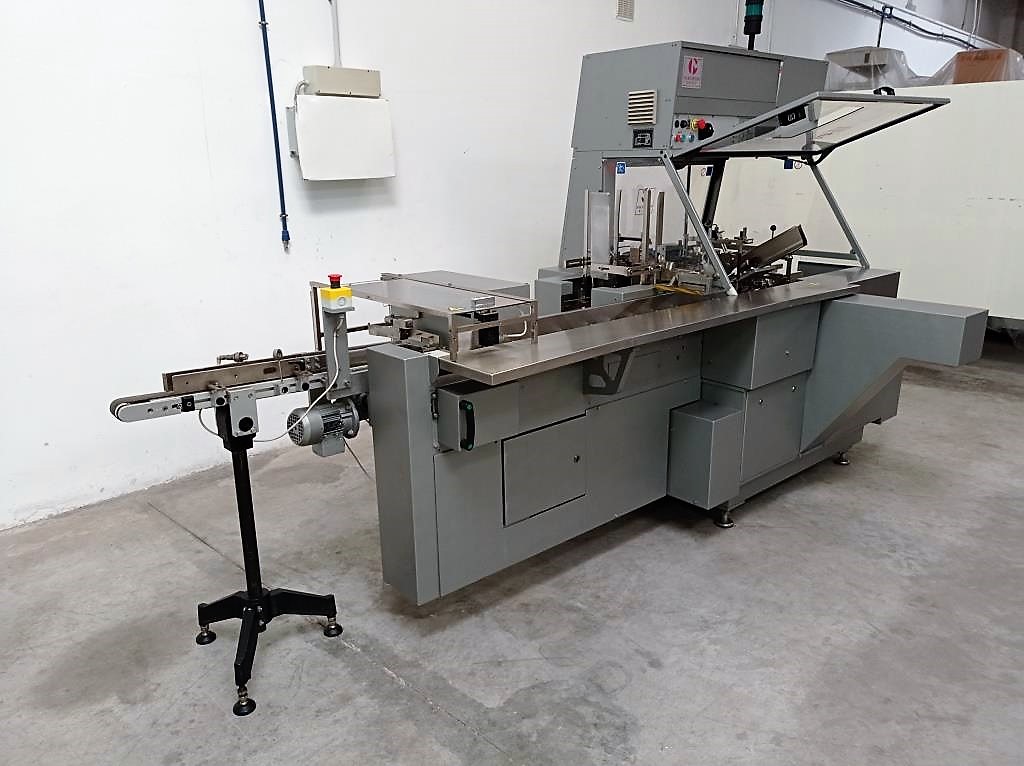

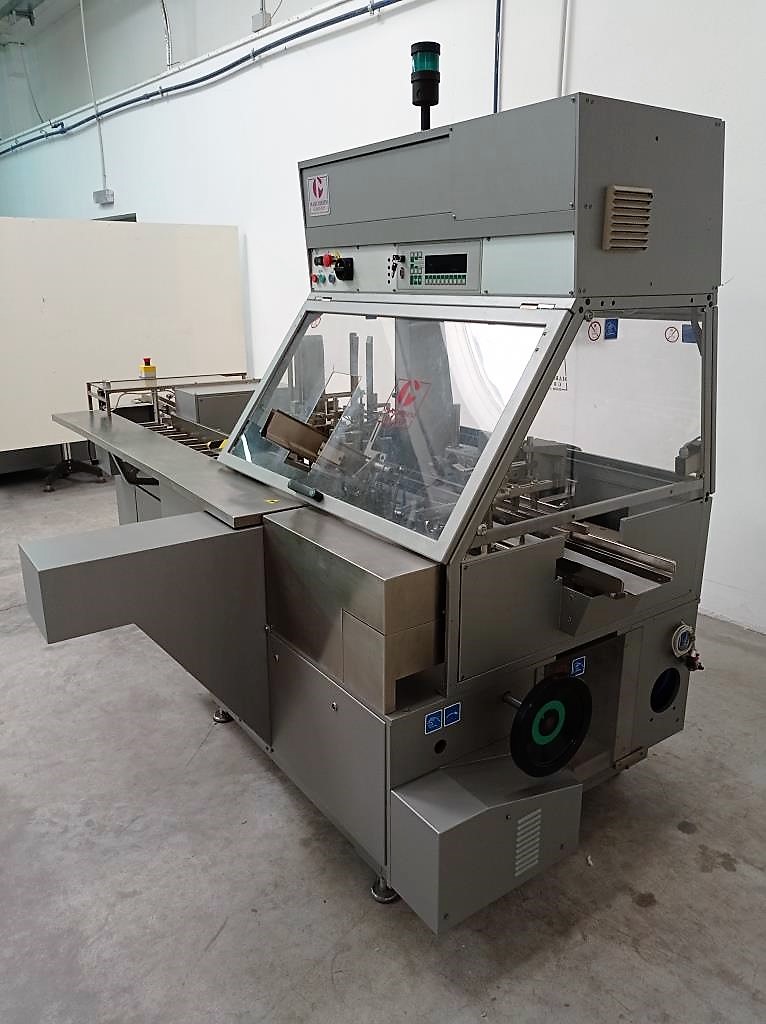

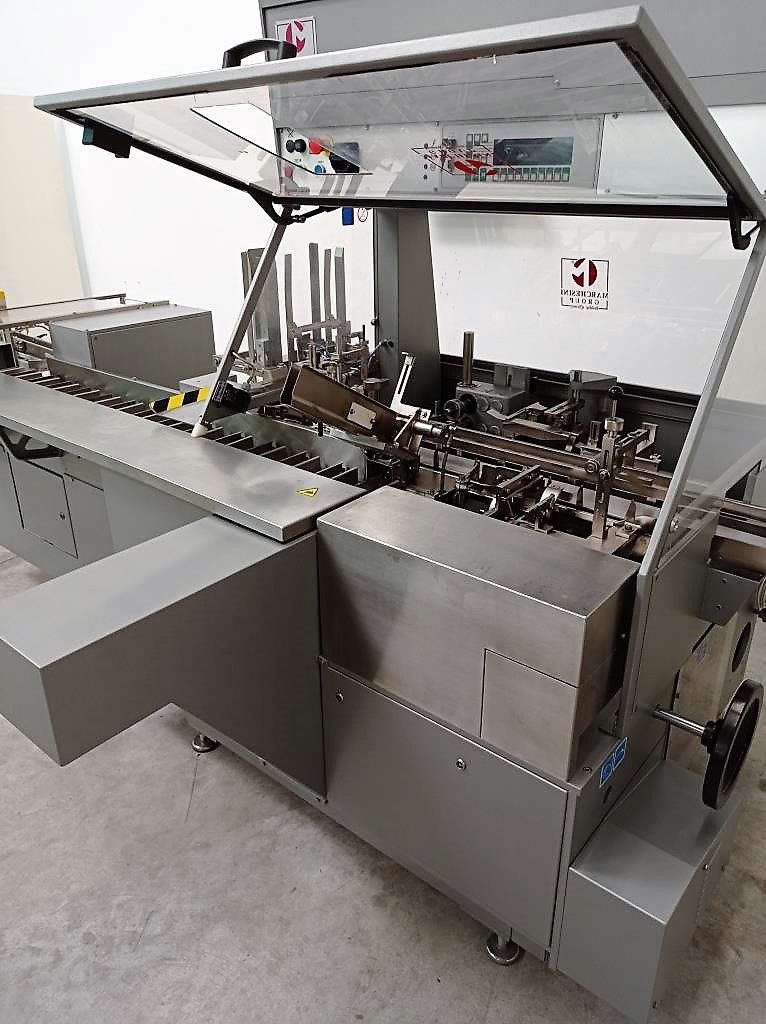

MARCHESINI CARTONING MACHINE, MODEL BA 50

Year of construction: 2000

TECHNICAL DATA:

Dimensions: mm 2750 x 1610 x 1750

Weight: kg 960

Voltage: Volt 380

Frequency: Hz 50

Power absorption: Kw 1,5

Production characteristics:

3 phases

Carton width: 40-140 mm

Carton height: 20-80 mm

Carton length: 70-190 mm

Folded leaflet range:

Min. 20 x 105

Max. 50 x 200

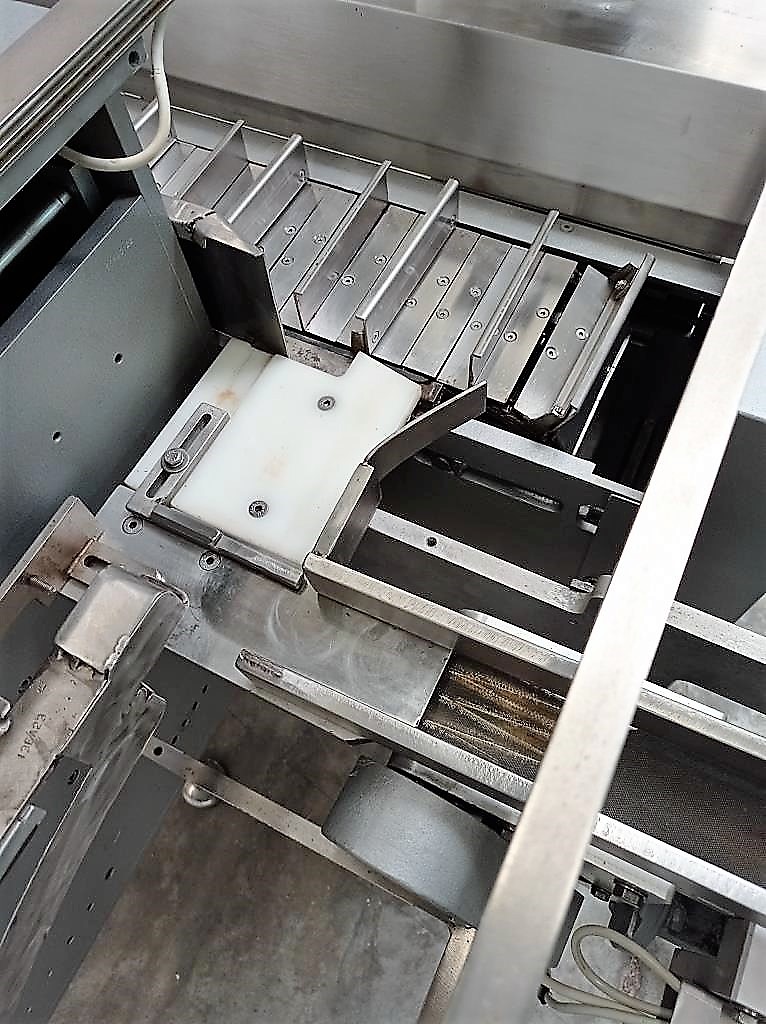

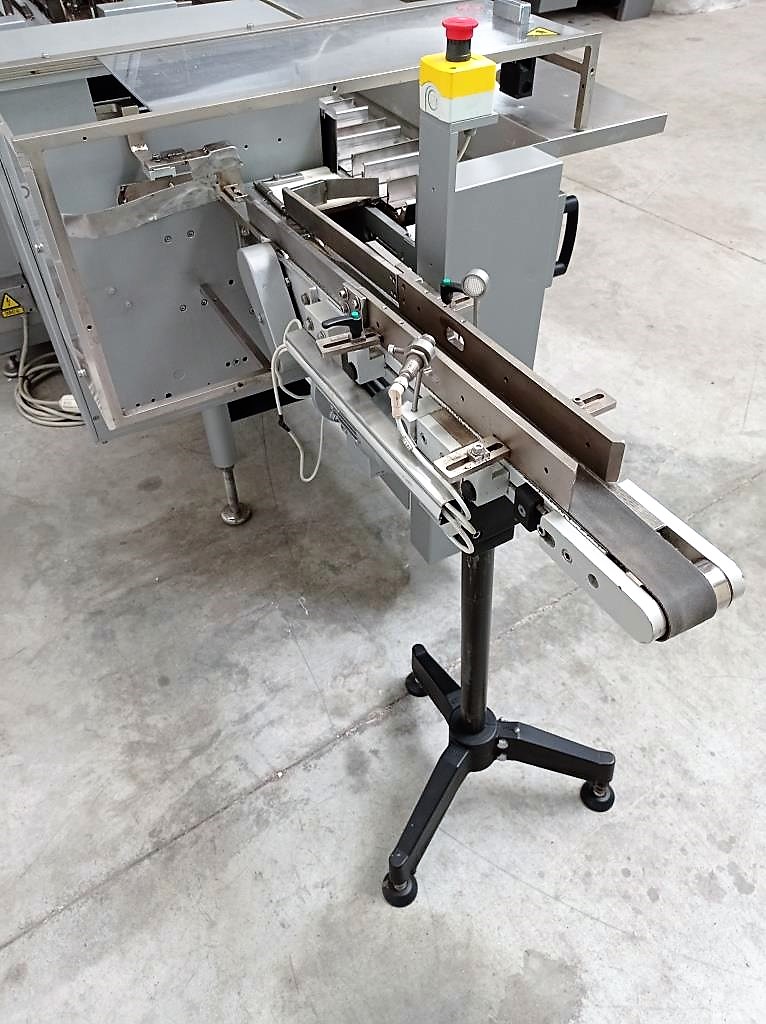

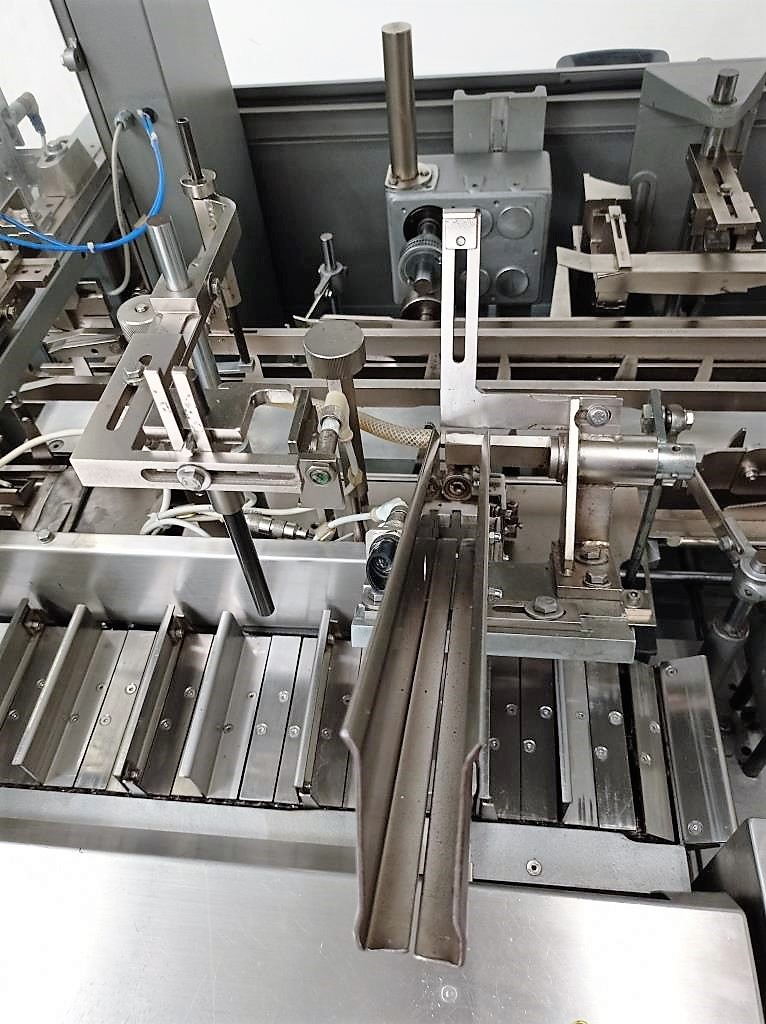

Operating cycle: the product to be cartoned is transported to the drawer chain by means of a motorized conveyor belt. A sensor detects the presence of the product in the drawer and controls the fetching of the carton.

Each product transported by the drawer chain must correspond to the carton taken from its storage. The carton is coded, opened by a specific device and placed on the conveyor, on which it advances until it reaches a sensor that checks its presence. In case of missing carton or malformed carton, the machine stops to allow the verification and correction of the anomaly.

A pusher introduces the product contained in the drawer of the transport chain and the pre-folded leaflets inside the relative carton. In case of failure to take the leaflet, the carton is discarded.

Once the insertion of the product and the pre-folded leaflet is completed, the carton continues to the exit via the conveyor. During the journey, the packaging cycle is completed by carrying out ribbing of the flaps and final closing of the carton.
