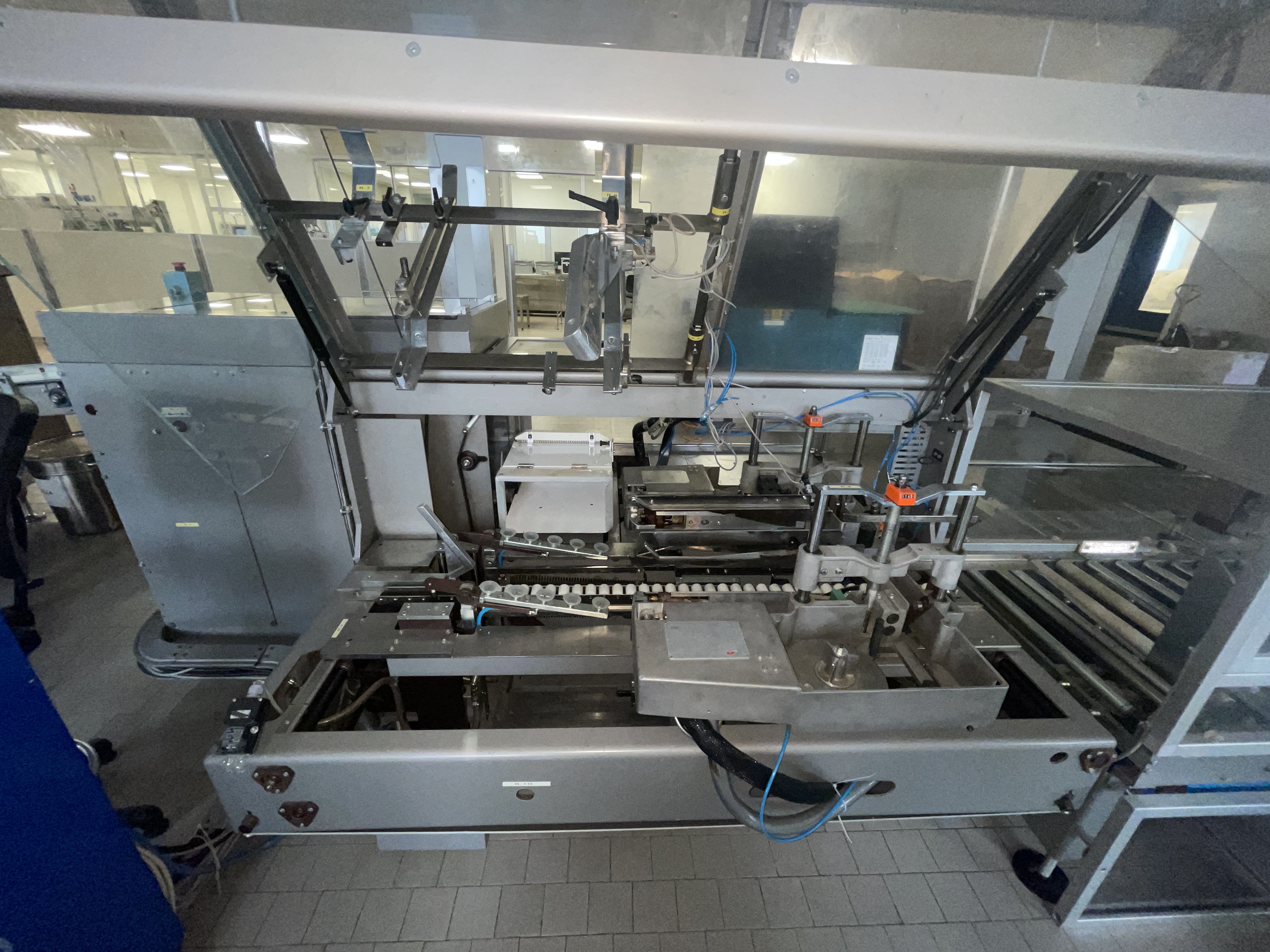

PRB - Case Packer - NEW POCKET
Specifications
Manufacturer | PRB |
Model | NEWPOCKET |
Year | 1993 |
Condition | Used |
Serial Number | MLTC-23-929 |
Description
Automatic Horizontal Case Packer, machine for the final packaging in cardboard, made in a way to ensure reliability, versatility and space saving. A really small size equipment with high production features.
TECHNICAL DATA
Length mm 2500
Width mm 1700
Height mm 1200
Net weight Kg 1800
Power absorbed Kw 3,18
Electric Frequency Hz 50
Voltage Volt 380
Pressure bar 6
PRODUCTION CHARACTERISTICS
Production 30 cycles/min
Case formats min-max (Length x Width x Height)
mm 150x105x130
mm 450x350x290
Electrical panel with PLC.
Level control of boxes in stock, maximum load in power control, counters (packagings, working hours, etc.).
Automatic unit able to perform automatically and in a continuous cycle the grouping of products, their introduction into shipping cartons previously taken from stock, formed and positioned in such a way as to enable the mobile hopper and the pusher to carry out the filling, which completed the two groups of transport side, which serve to maintain the correct squaring, convey the same to the exit by passing it through the operating groups which carry out the closure on both sides by the applying hot melt glue.
The entire machine is equipped with safety sensors and plexi-glass safety doors. This unit can be easily changed over for different types of products including boxes, bottles, tubs and containers, and different size boxes. Closing of cases by glue on both sides with Nordson glue system.
