FEDEGARI - Washer - XFSW7

New Unused 2016 FEDEGARI XFSW7 Eco-Steam Washer

This listing is for one of two brand new 2016 FEDEGARI XFSW7 Eco-Steam Washers complete with trolleys, controls and documentation. A high-end two door GMP washing solution, the XFSW7 (part of FEDEGARI’s FSW range) combines impeccable cleaning results with impressively low operational costs over conventional hot-water systems.

This offering represents a unique opportunity for investment in a best-in-class machine, unused and in the original packing, at a fraction of the original retail price.

Applications include uses in the food, bio-pharmaceutical, laboratory and cosmetic sectors with suggested loads including machine parts, tools and glassware.

Key Information

Unit Dimensions (LxWxH): 2300x1690x3000mm

Dimensions of Inlet: 1200x1200mm

Chamber Depth: 1200mm

Door Type: Vertical Sliding Doors

Voltage: 400v Three Phase

Frequency: 50Hz

Protection Rating: IP45

Features

- Built-in steam generator reducing utility and installation requirements

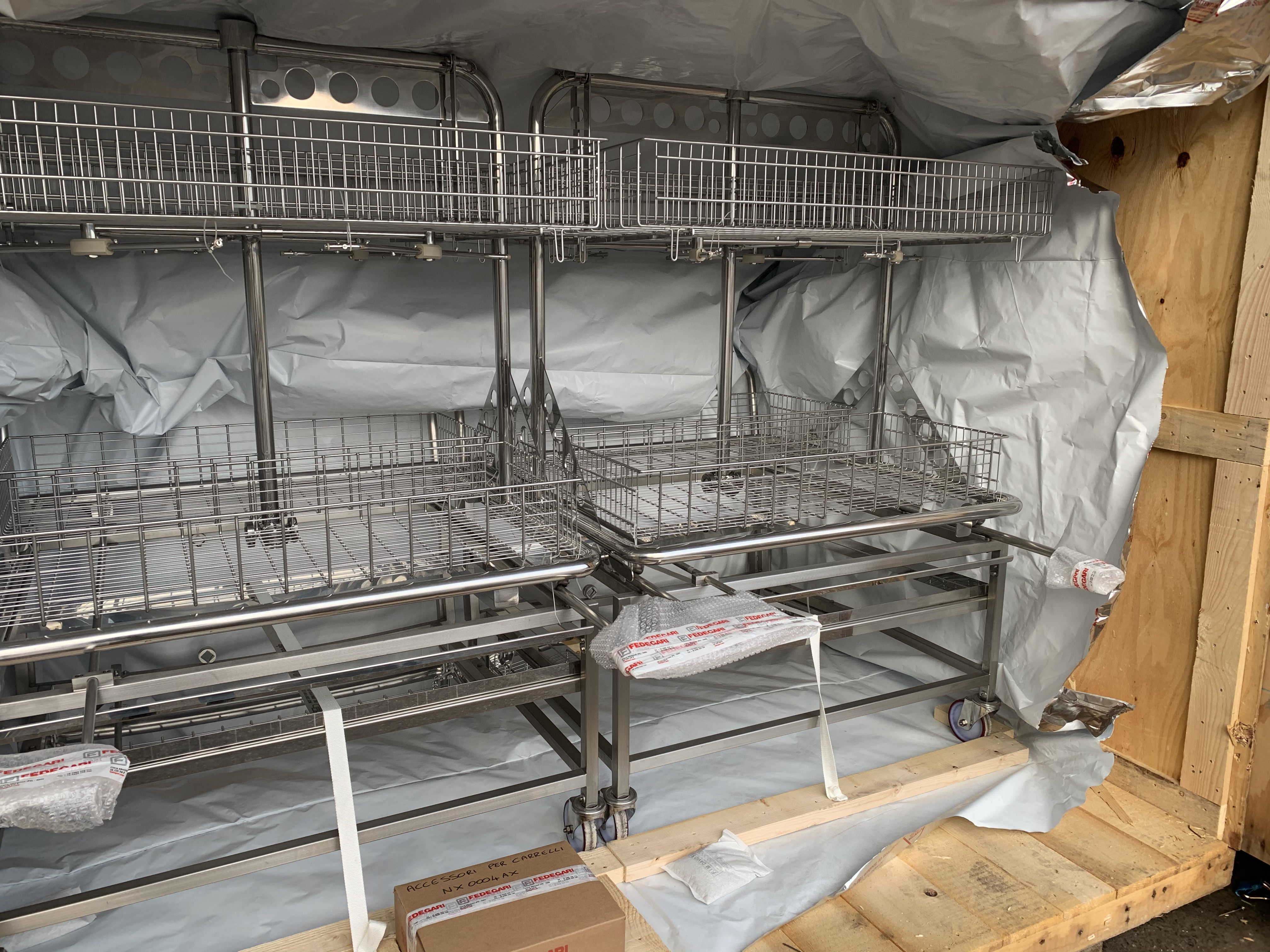

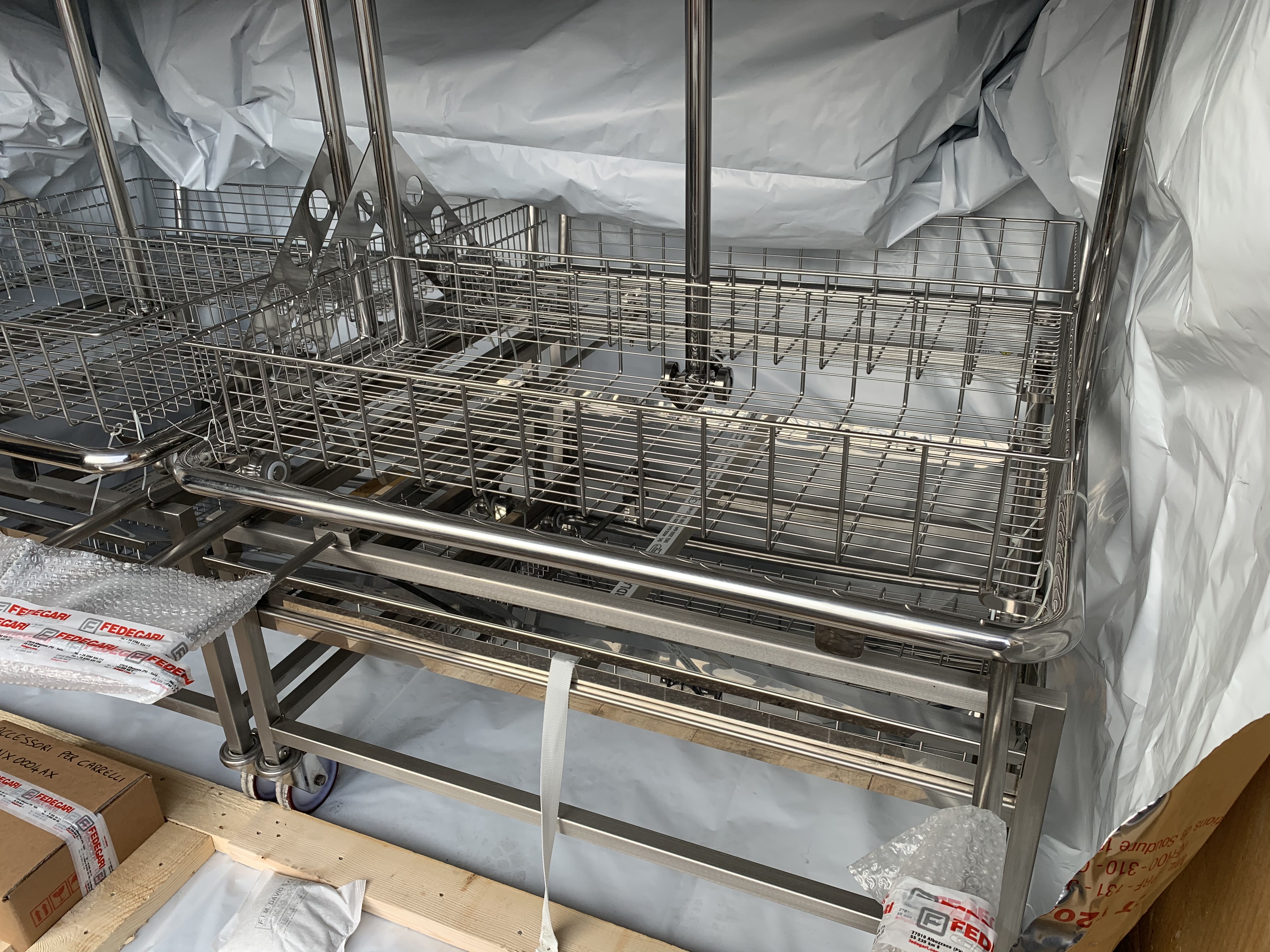

- Comes with two original trolleys both new in box

- Includes 3 additional dosing ports on top of the standard 2 ports

- Chamber and hydraulic components made of AISI 316L stainless steel with sanitary finishing.

- Doors made of glass with perimeter reinforcements in AISI 316L stainless steel.

- Internal trolleys designed to avoid any water stagnation thanks to dedicated draining points.

- Thema4 process controller ensuring total control on washing performance and reliability during inspection and validation activities.

- Audible and visible alarms in case of emergency, with an internal LED lamp operative during the whole cycle

- Packaged as an integrated skid with a separate control cabinet.

Compliant to the following standards:

- European directives: 2014/30/EU – Electromagnetic compatibility (EMC), 2014/35/EU – Low tension equipment (LVD), 2006/95/EC – Safety of machinery (MD)

- European standards: EN 55011, EN IEC 61000-4-2, EN IEC 61000-4-4, EN 61000-6-2, EN 61000-6-4, EN 60204-1

- Electrical steam generator compliant to: 2014/68/EU – Pressure equipment device (PED)

- FDA: compliance for non metallic component in contact with process fluids

- GMP

- GAMP5

- 21 CFR Part 210, 211 e 11

- UL 508A

- NFPA-79

- ASME BPE
